Description:

Polyimide film is a good H grade insulating material. It is widely used for insulation purpose in electrical appliances which are used in special environment. To use the polyimide film means reducing volume and weight of the electrical appliances while retaining the same output or increase the capacity without increasing in frame size. It can also prolong the service life of the electrical appliances and increase their reliability.

聚酰亚胺薄膜是优良的 H 级绝缘薄膜，广泛用于特殊工作环境下的电子电气产品绝缘。使用聚酰亚胺薄膜可以在提供同等或更优的性能的同时大大减小设备的体积和重量。聚酰亚胺薄膜还可以保证电气设备更长的使用寿命和可靠性。

Features:

¨ High temperature resistance (permanent working temperature over 180℃)
¨ Excellent dielectric withstanding

¨ Good mechanism property

¨ Chemical resist

¨ Flame retardant

¨ RoHS / REACH compliant

材料特性：

- 耐高温

- 更高的电气强度

- 更好的机械性能

- 耐化学性

- 阻燃性

- 符合 ROHS/REACH 环保要求



Thickness 厚度			1mil		0.025mm+/-0.002mm
Density 密度				1.43 +/- 0.02 g/cc
Tensile strength, min		MD 纵向		130 MPa
拉伸强度
		TD 横向		90 MPa
Elongation, %, min 伸长率		MD 纵向		15%
		TD 横向		20%
Dielectric strength,   min 介电强度			0.8 kv		35 MV/m
Surface Resistance at 200+/-5℃, Ohm ,		min 表面电阻		1012


* The features is tested under room temperature (23℃) unless described

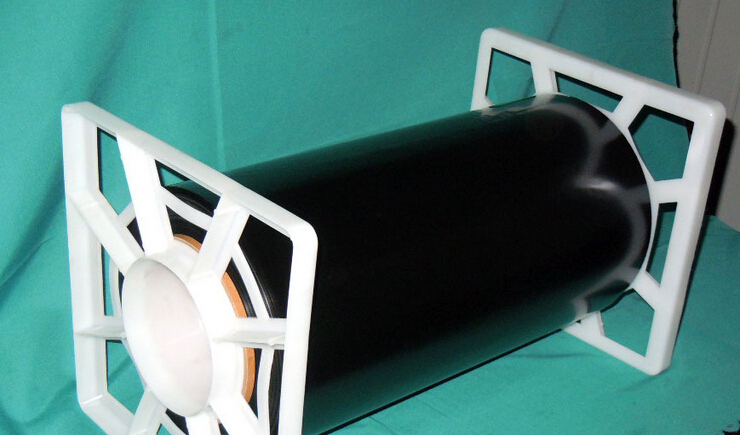

Supply 供货及包装:

- Core: 3 inch (76mm) and 6 inch (152mm) paper or plastic core； 3 英寸或 6 英寸无缝纸管

- Width: 520mm； 宽度 520mm

- Length: 1500m or 2000m   without splice  ； 长度 1500m 或 2000m,  无接头
